Antenna Mount Crossbar - Version 1

Specifications:

• Maximum length 130 cm wide

• Collapsed length 70 cm

• Weight ~ 600 grams

• Materials: Aluminium Alloy, Steel, Delrin

• Finishes: Hard Anodising, Powder coating, Chemical Blackening

Features:

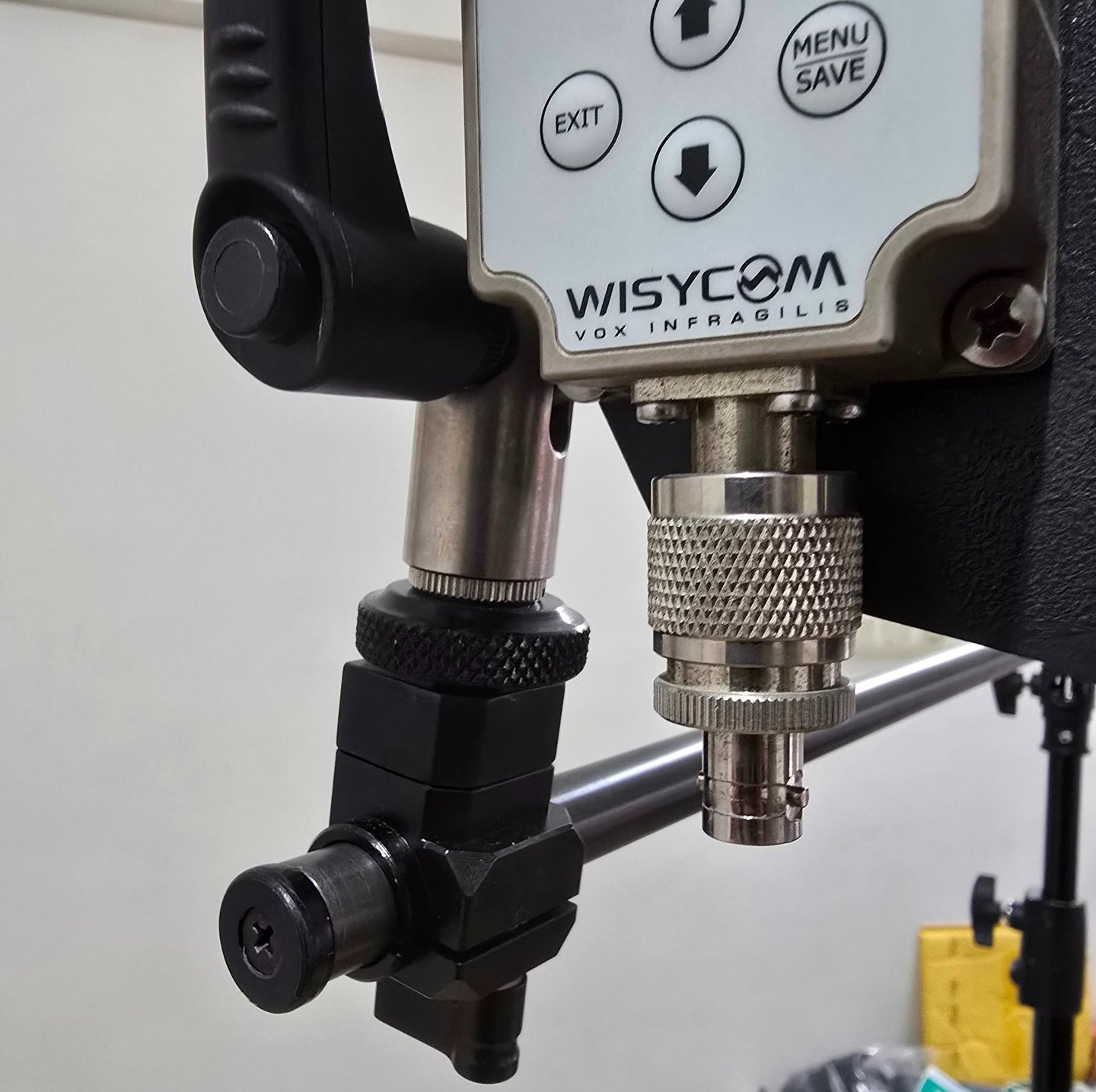

• Any manufacturer's antenna with a 3/8" threaded mounting hole can be installed

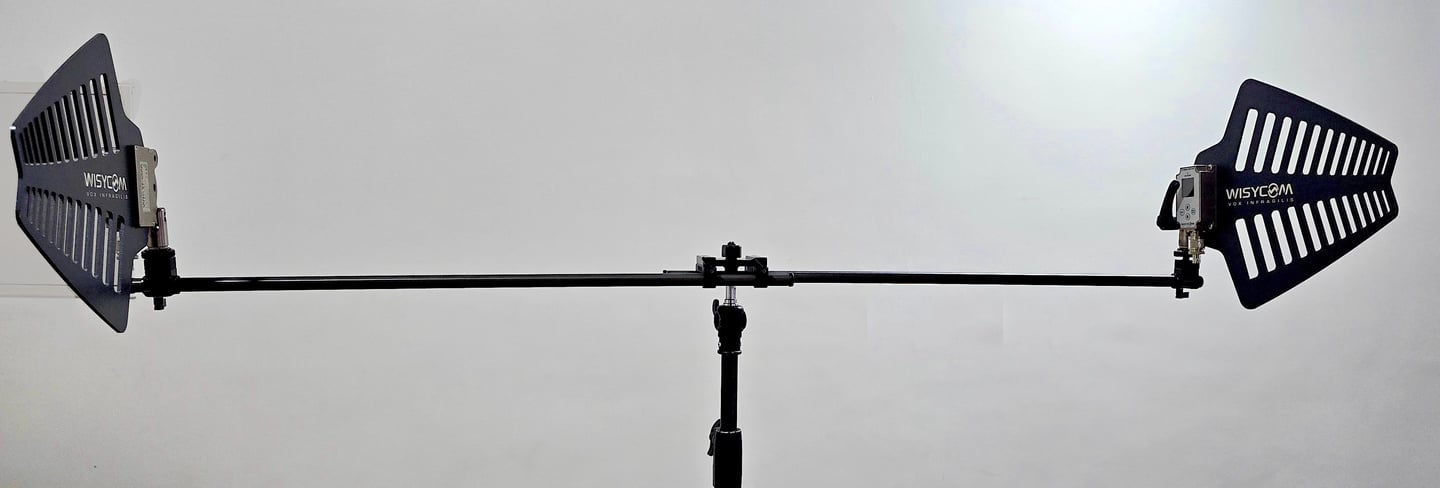

• Distance between antennas adjustable (Maximum distance - 130 cm)

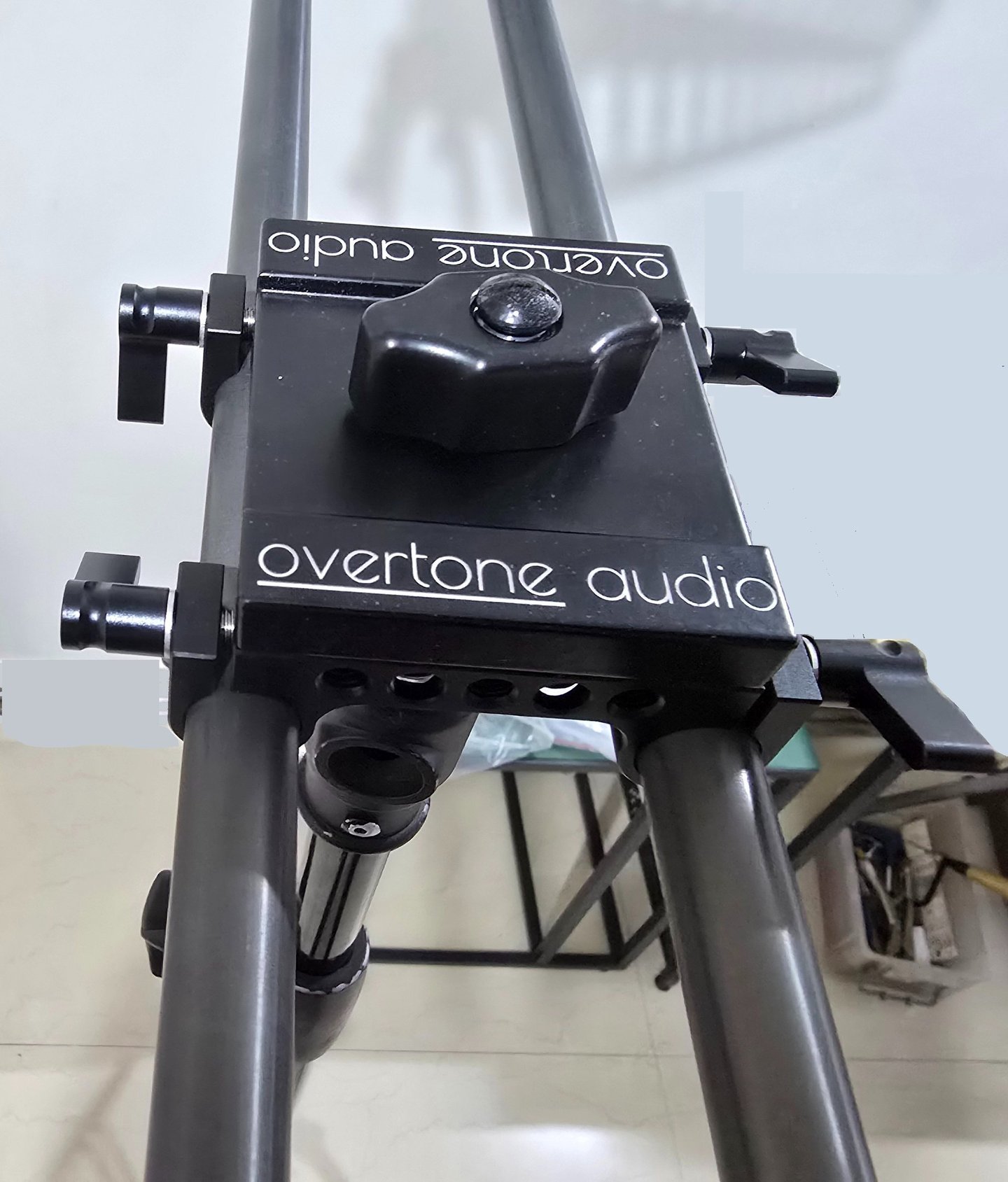

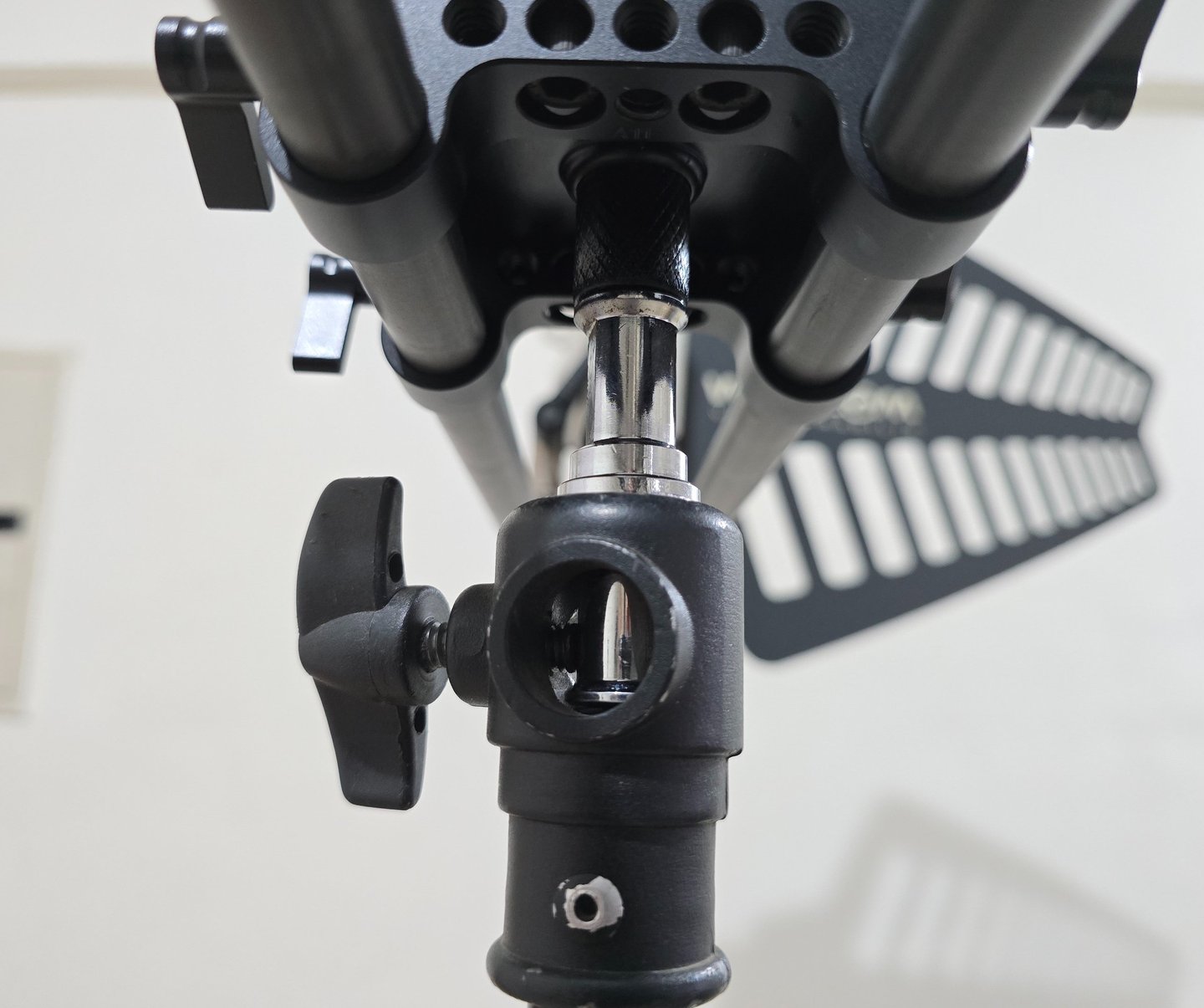

• Securely affixes on any 3/8" stud - either a tripod stand or a boom pole

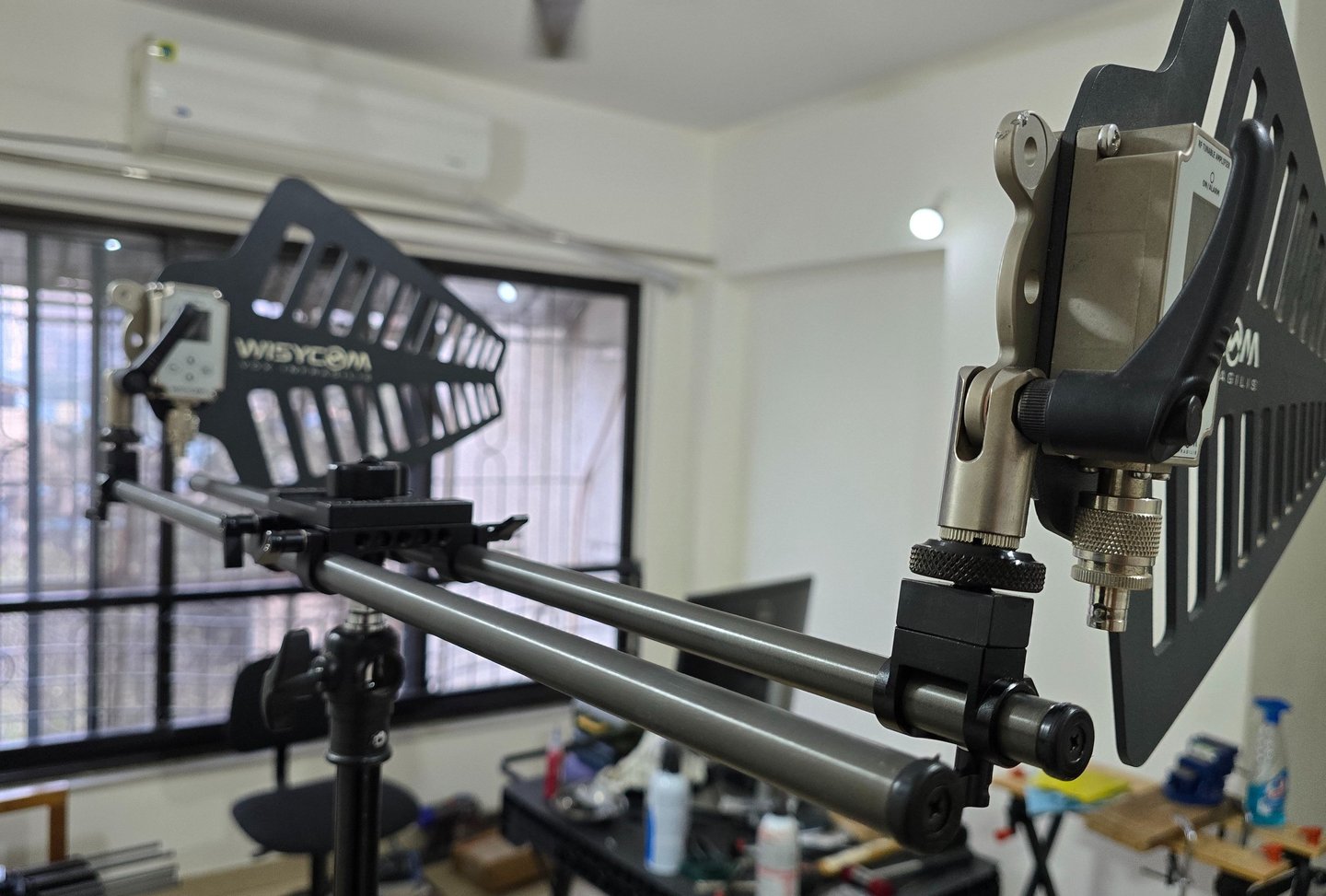

• Antennas can be tilted freely upwards or downwards

• Very easy to temporarily collapse the extended length to go through a corridor or doorway and then returned to original position within a minute

• All parts are captive

• Totally serviceable, all parts can be replaced

Version 2 design is underway. Details will be published here. Version 2 will be put up for sale online.
